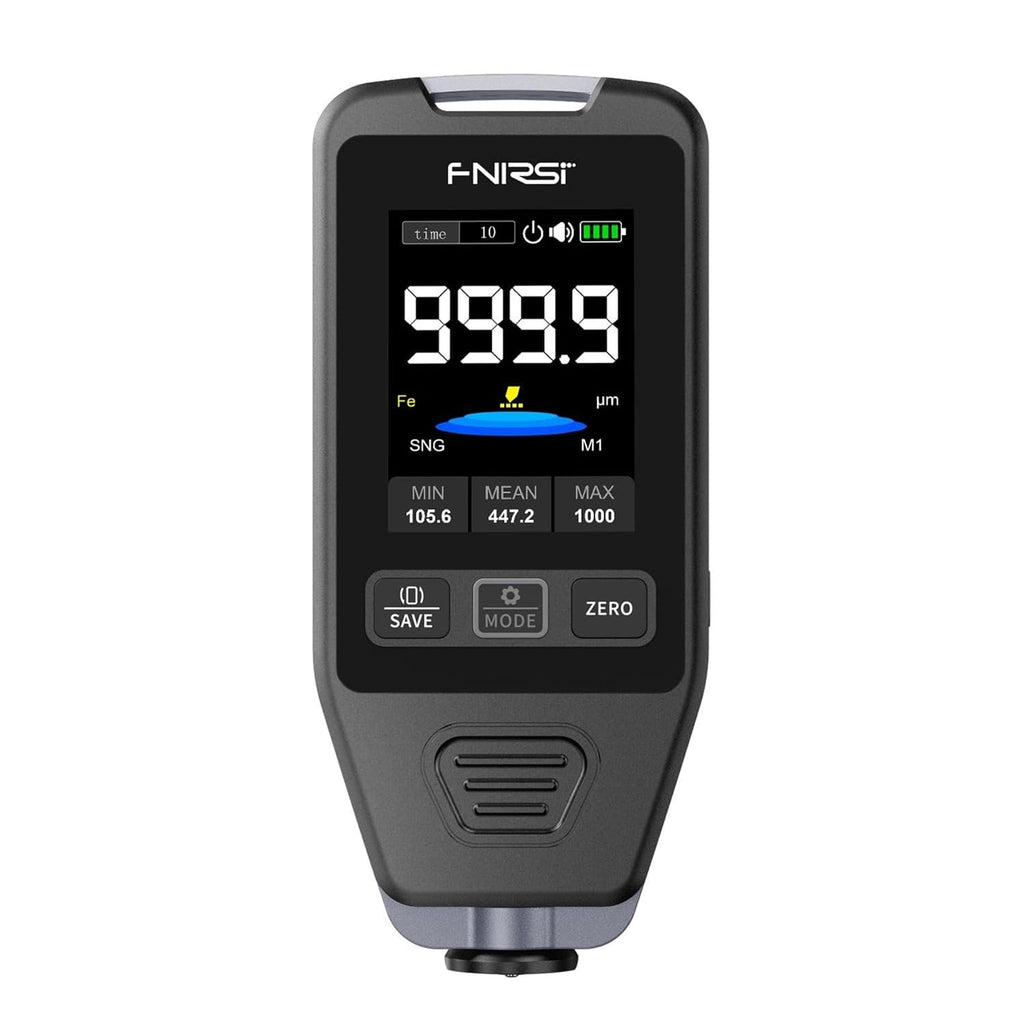

PCC Premium Car Paint Thickness Gauge Digital Coating Tester
Rs. 5,499.00
The PCC CTG-20 Digital Coating Thickness Gauge is a precision automotive and industrial measurement tool engineered for rapid, non-destructive measurement of paint, varnish, and body filler layers. Designed for used car inspectors, auto body technicians, detailers, and quality control professionals, this gauge instantly identifies hidden repairs, underlying bodywork, and metallic iron powder putty.

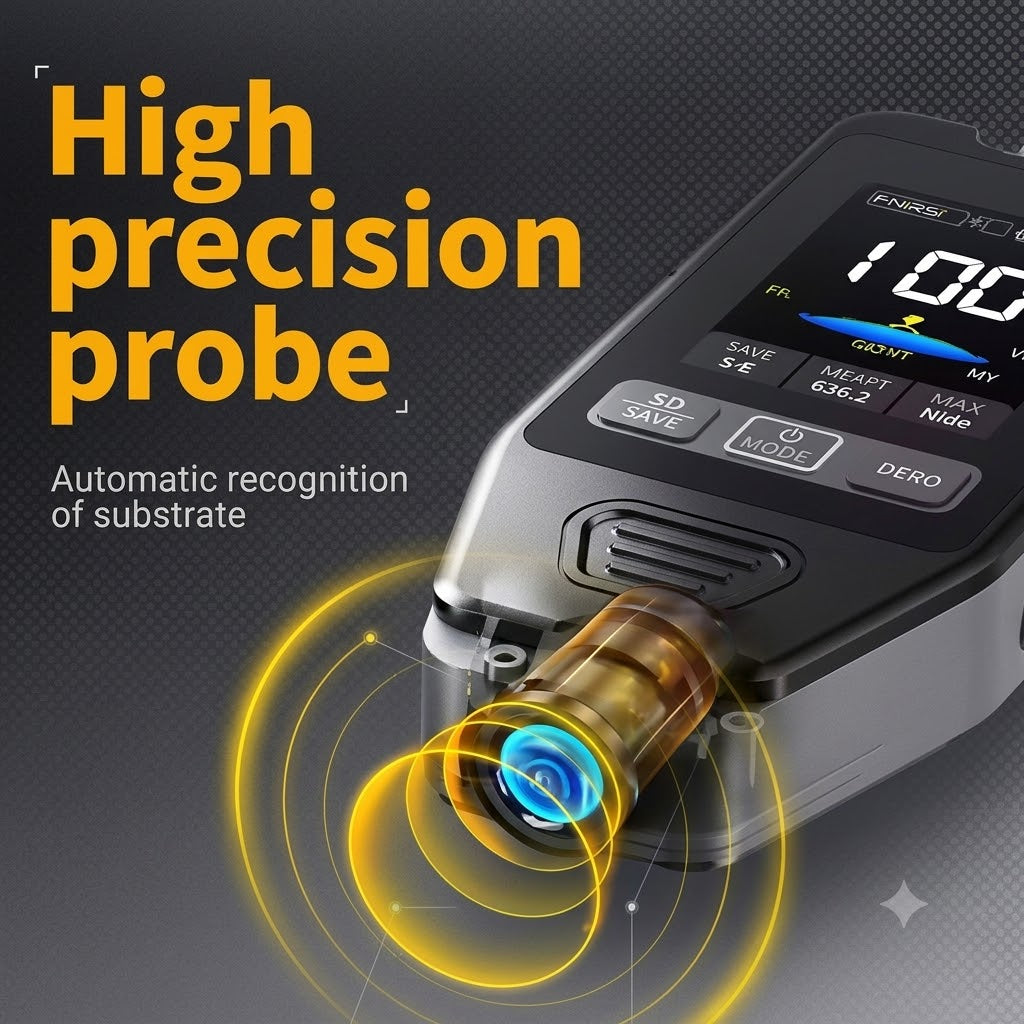

Featuring automatic substrate recognition and high-precision probe technology, the CTG-20 operates seamlessly across both magnetic (Fe) and non-magnetic (NFe) metals via electromagnetic induction and eddy current principles.
Key Features
-
High Precision & Fast Response: Delivers accurate readings in just 0.5 seconds with a high resolution of 0.1 µm and an accuracy tolerance of $\pm(3\% + 2\text{ µm})$.
-

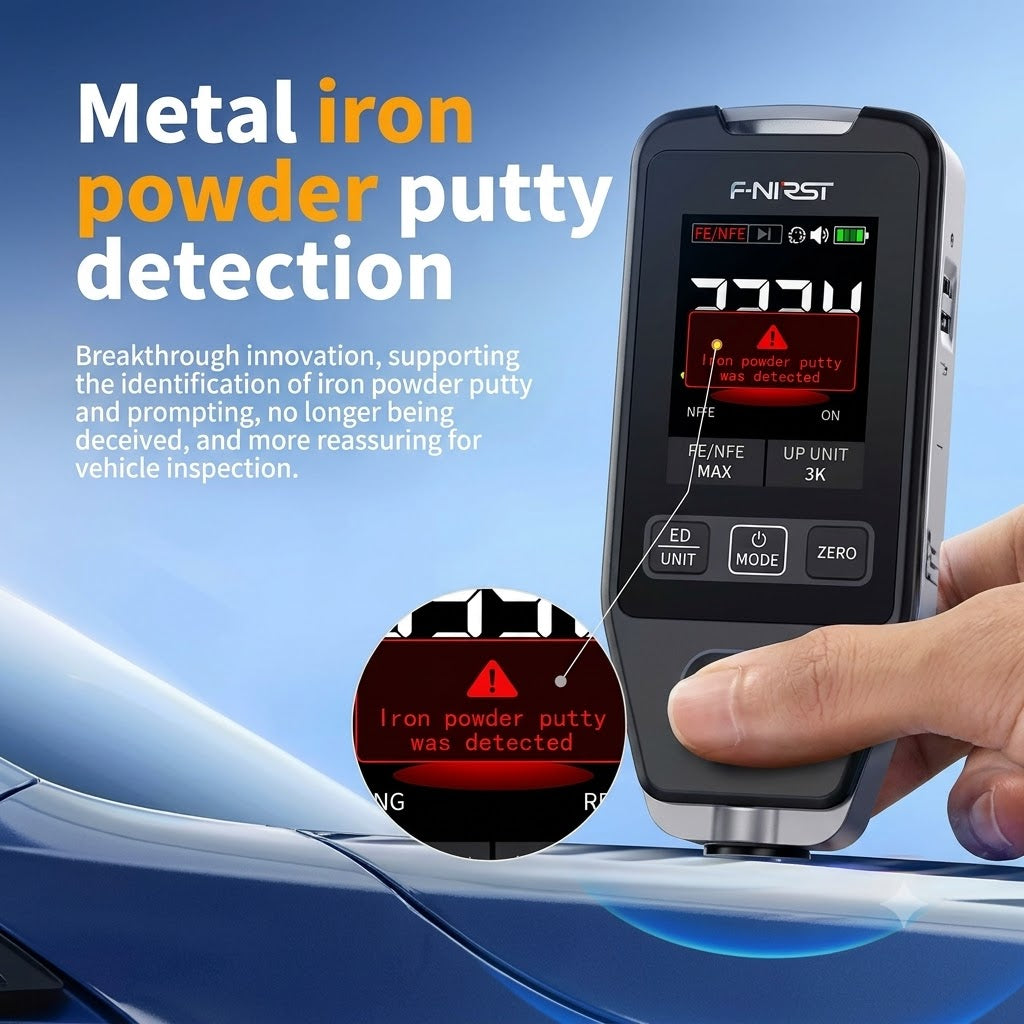

Iron Powder Putty Detection: Built-in intelligent detection algorithm flags the presence of metallic iron powder putty (frequently used to hide body repairs) with an explicit screen warning.
-

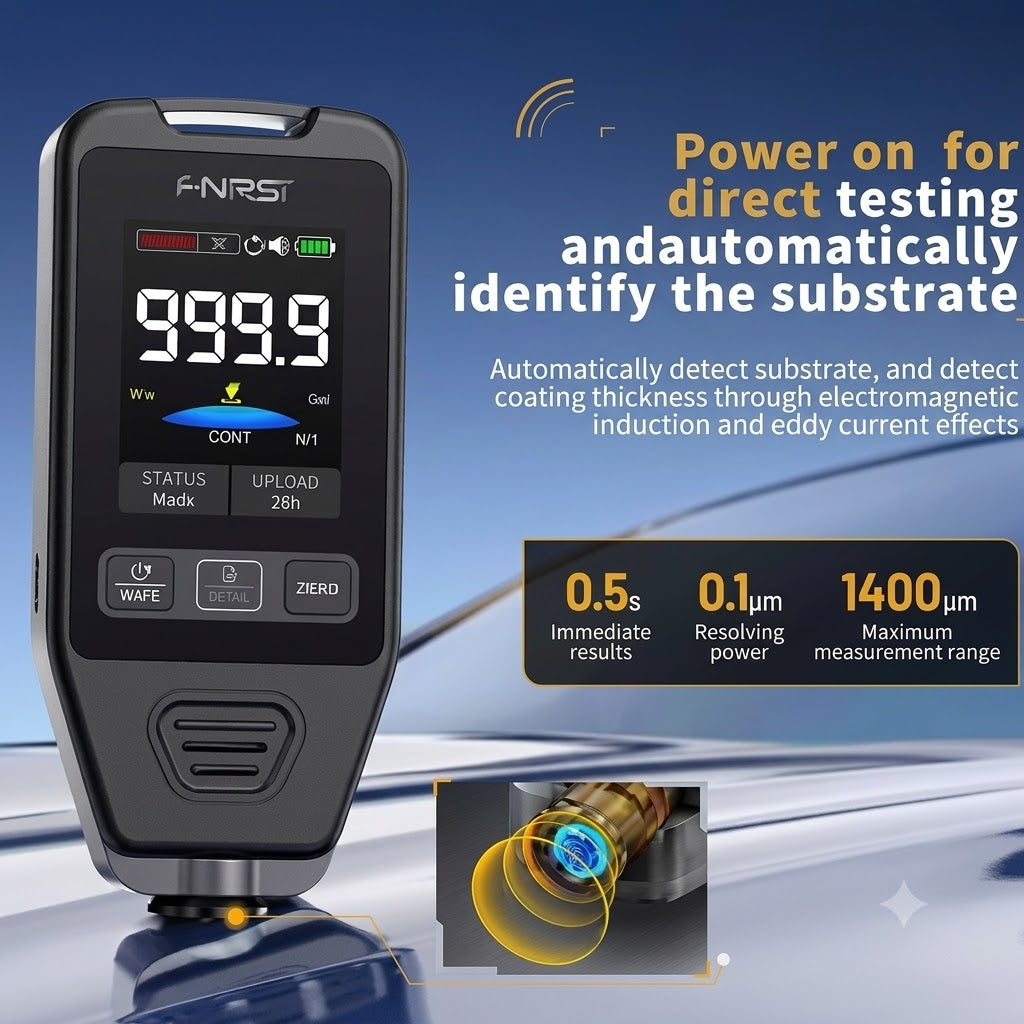

Automatic Substrate Recognition: Automatically detects ferrous (Fe) and non-ferrous (NFe) metal bases upon contact—no manual mode toggling required.
-
Dual Unit Measurement: Seamlessly toggle between micrometers ($\mu\text{m}$) and mils ($\text{mil}$) depending on inspection standards.
-

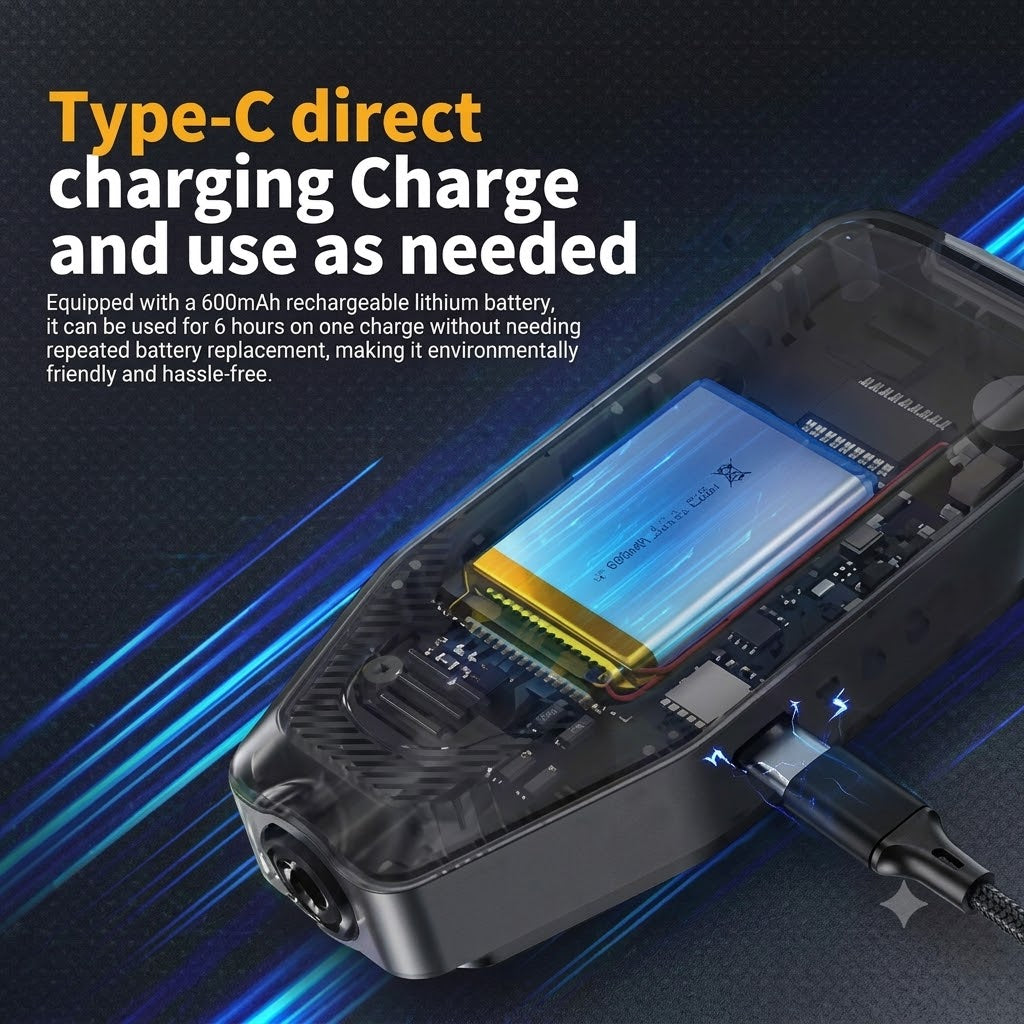

Compact & Rechargeable: Powered by an integrated 600 mAh lithium-ion battery with Type-C USB charging capability for portable field operation.
-
Curved Surface Testing: Designed with a minimum convex curvature radius of 5 mm and a concave curvature radius of 25 mm to measure vehicle contours, body lines, and trim edges accurately.
Technical Specifications
| Parameter | Specification |
| Model |
CTG-20 |
| Brand |
PCC |
| Measurement Range |
$0\text{ to }1400\text{ }\mu\text{m}$
|
| Resolution |
$0.1\text{ }\mu\text{m}$
|
| Measurement Accuracy |
$\pm(3\% + 2\text{ }\mu\text{m})$
|
| Response Time |
0.5 seconds |
| Supported Units |
$\mu\text{m}$ / $\text{mil}$
|
| Min. Convex Curvature Radius |
$5\text{ mm}$
|
| Min. Concave Curvature Radius |
$25\text{ mm}$
|
| Battery Capacity |
$600\text{ mAh}$ Lithium Battery (Rechargeable) |
| Operating Temperature |
$-10^\circ\text{C}$ to $+50^\circ\text{C}$
|
| Dimensions |
$115 \times 48 \times 18\text{ mm}$
|
What's in the Box
-
1 × CTG-20 Digital Coating Thickness Gauge
-
1 × USB-A to Type-C Charging Cable
-
1 × User Manual
-
Standard Calibration Substrate & Foil Set
Brand: Planet Car Care
MRP: Rs 5499(inclusive of all taxes)
USP: N/A
Net Quantity: 1 Unit
Generic Name: Thickness Gauge
Country of Origin: PRC
Imported by: Planet Co. A28, Sector 7, Dwarka, New Delhi 110075
