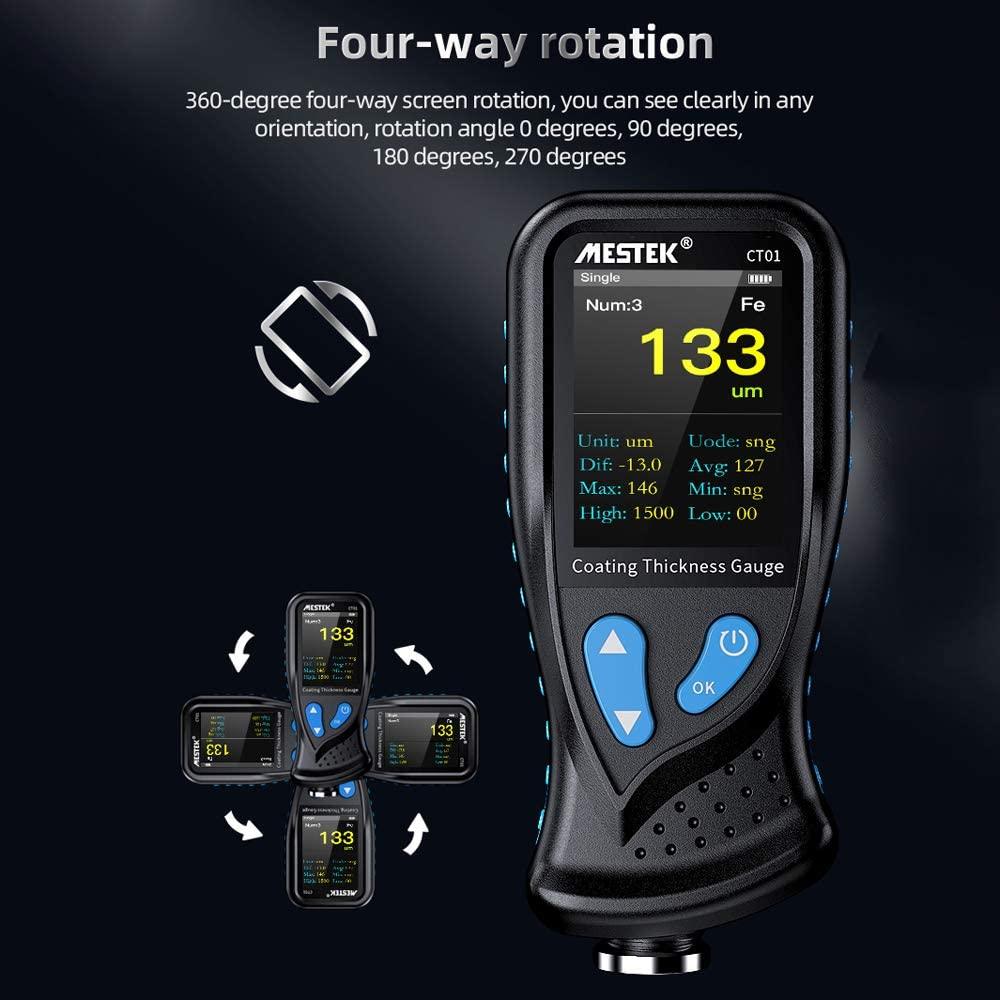

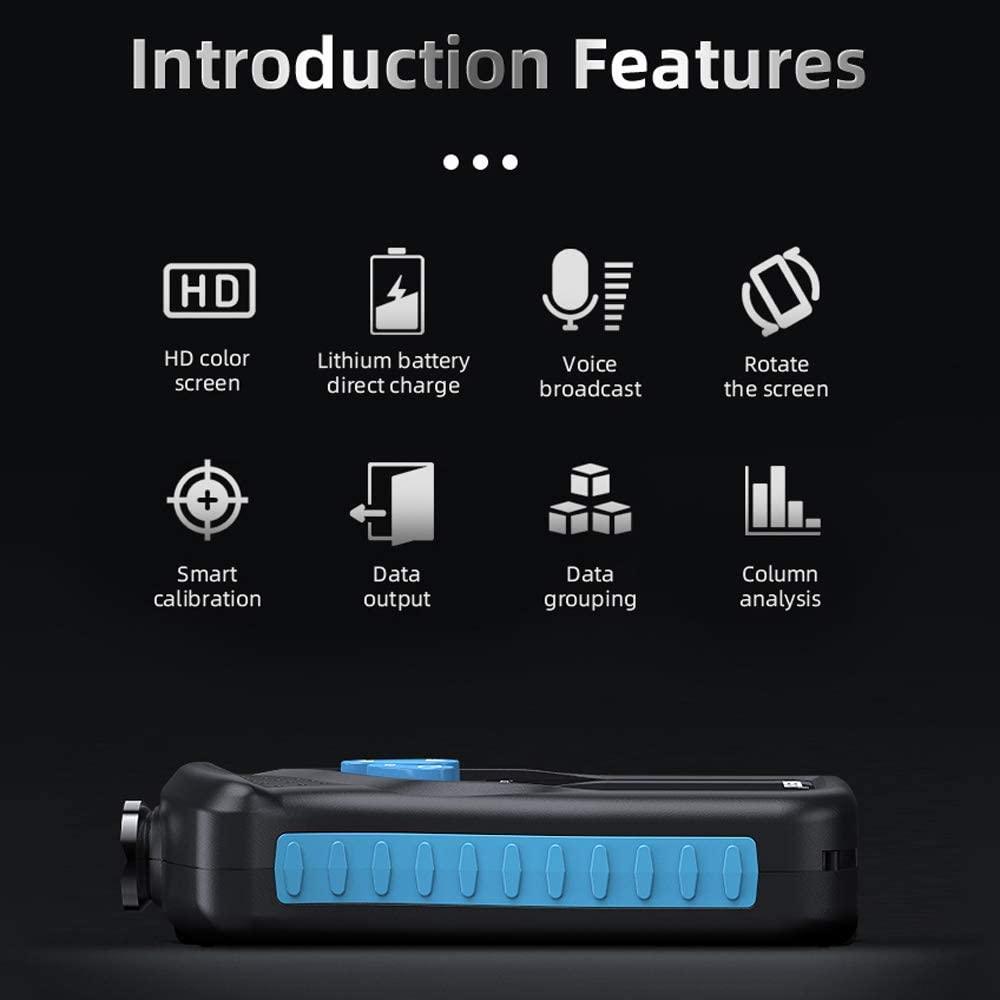

High definition color screen, lithium battery direct charging, voice broadcast, rotate the screen, intelligent calibration, data output, data grouping, column analysis.
Micrometer accurate probe: using micrometer-level high accuracy small-caliber probe, automatically identify the material properties of the substrate, instantaneous induction.

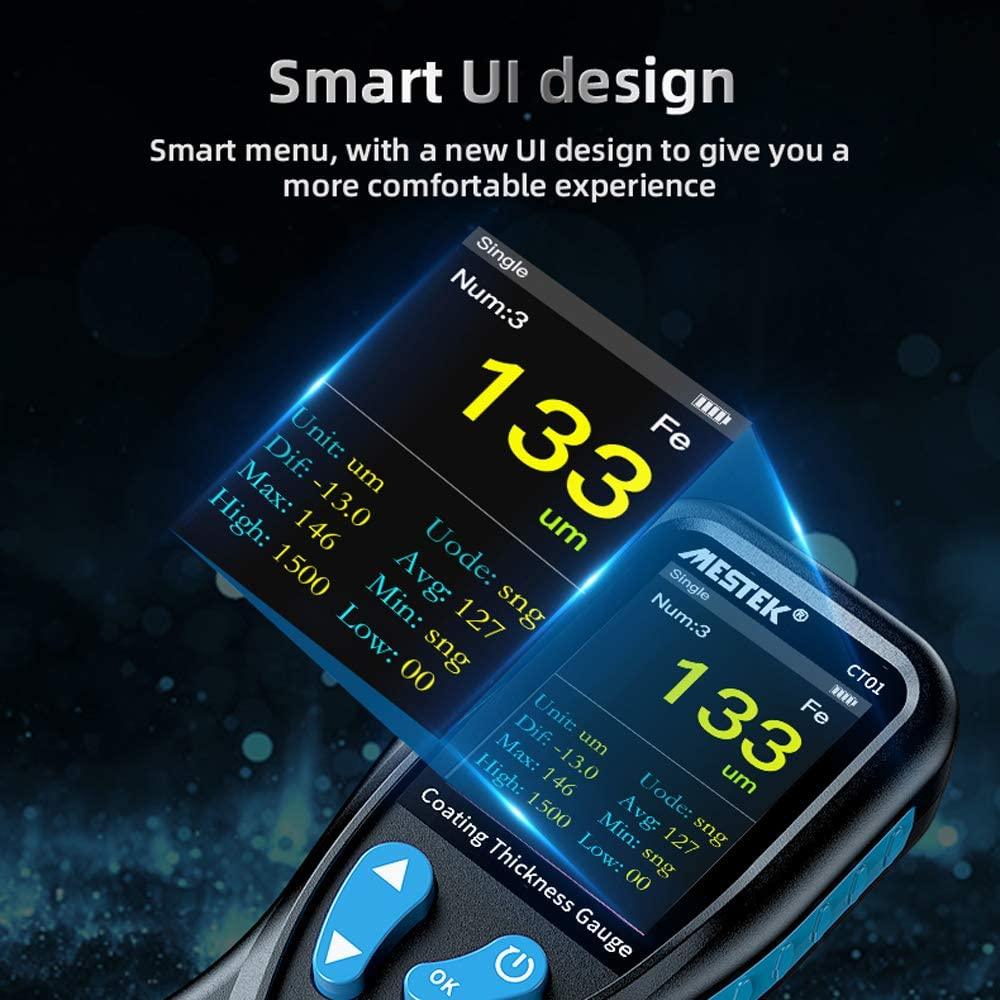

Intelligent UI design: intelligent menu, with a new UI design to give you a more comfortable experience.

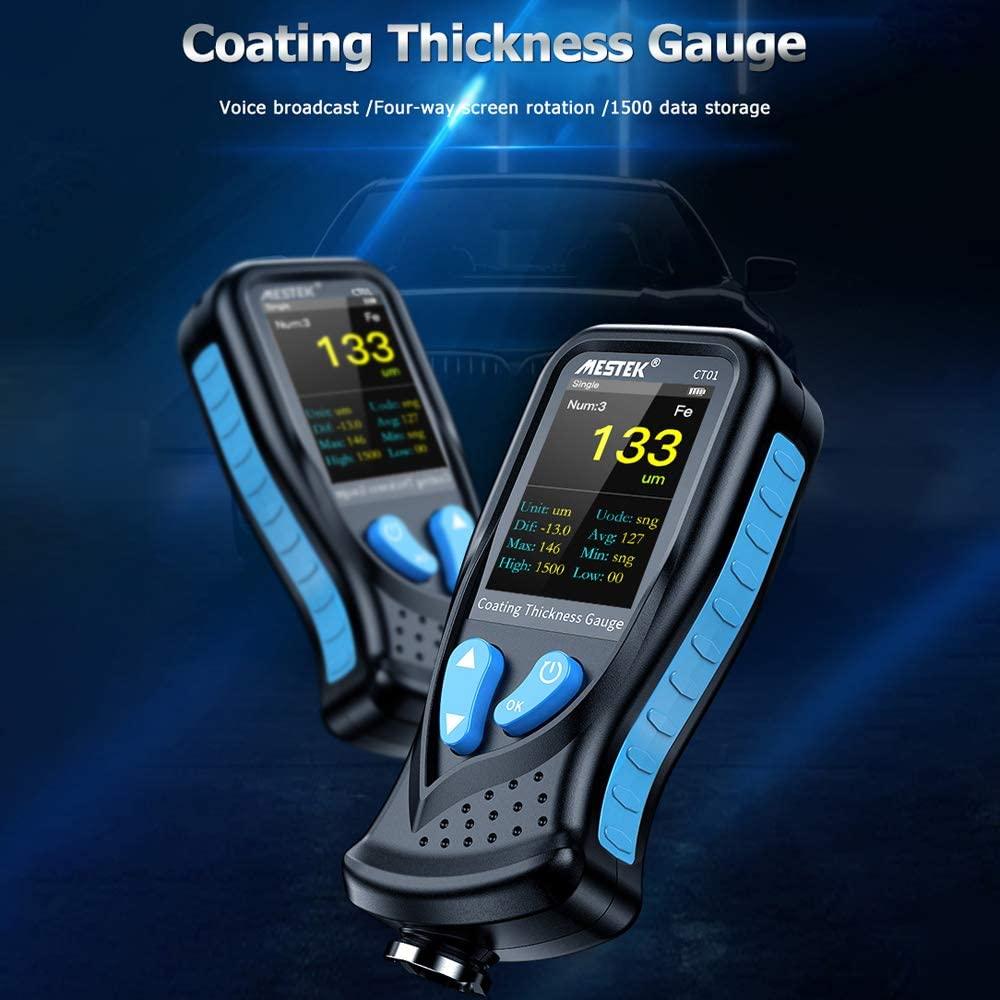

Live voice broadcast: the measured value is immediately broadcast by voice.
Package Dimensions : 22.05 x 12.6 x 5.91 cm; 3.5 Grams

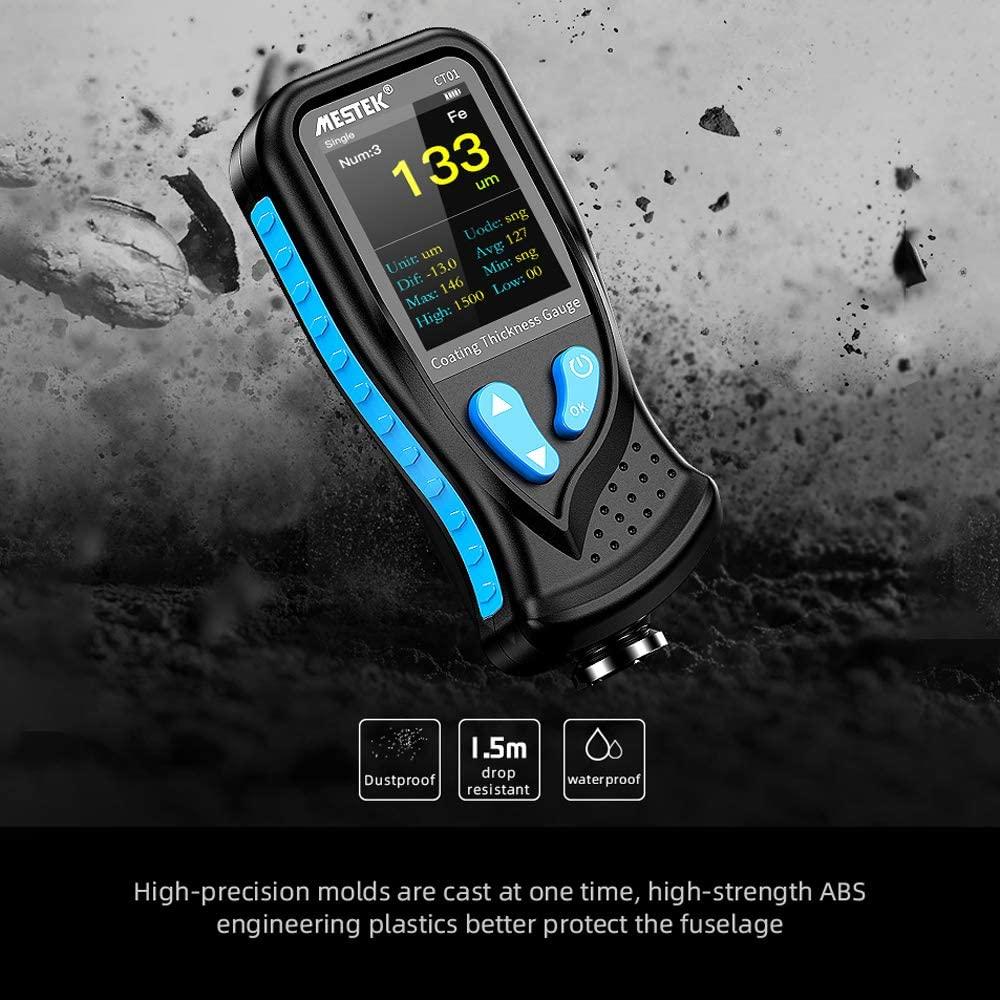

Specifications: Material: ABS Color: black Battery: 1 * lithium battery, 1000mAh, 3.7V (included) Measuring range: 0-1300μm / 51mil Resolution: (0.1μm (＜100μm), 1μm (≥100μm)) / 0.1mil Measurement error: ≤150μm ±5μm ＞150μm ±(3%H+1μm) Minimum diameter of magnetic metal substrate: 12mm Minimum thickness of magnetic metal substrate: 0.5mm Minimum radius of curvature of magnetic convex substrate: 2mm Collective minimum radius of curvature of magnetic concave surface: 11mm Minimum diameter of non-magnetic metal substrate: 50mm Minimum thickness of non-magnetic metal substrate: 0.5mm Package size: 150 * 90 * 55mm / 5.9 * 3.5 * 2.2in Package weight: 255g / 9.0ounce

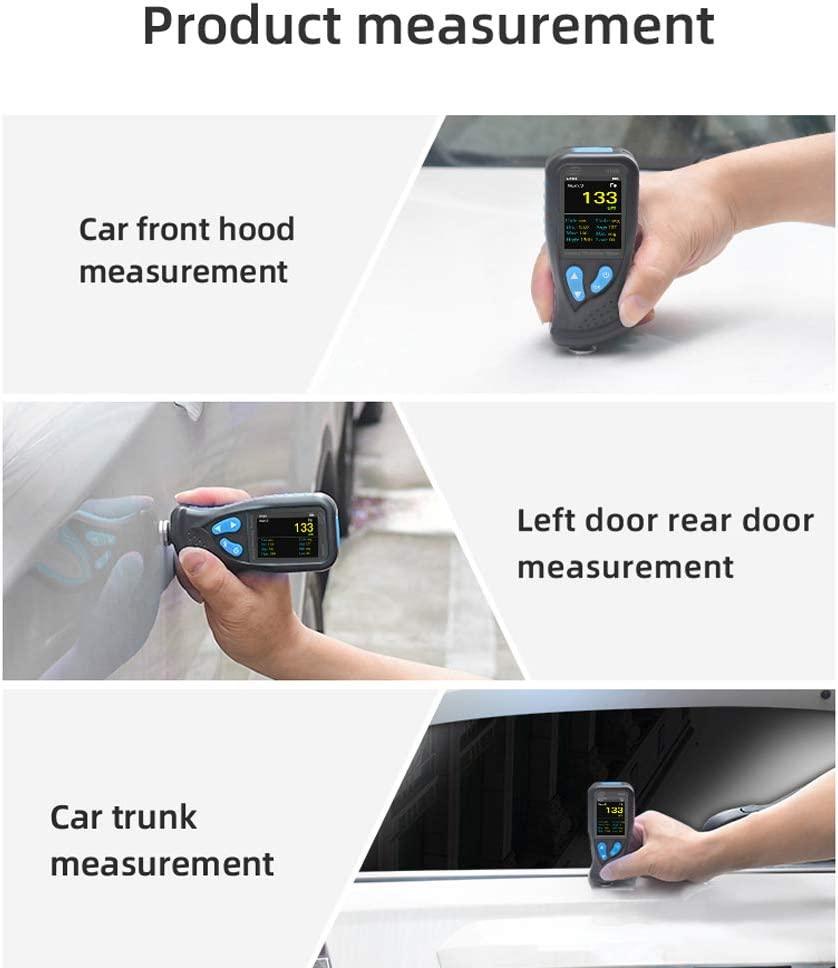

Measurement method: 1. Take five points A, B, C, D and E on the side of the body. 2. Take three measurements for each point and take the average value. 3. Add the average values of the five points and then take the average value. 4. Obtain the average thickness of the part.

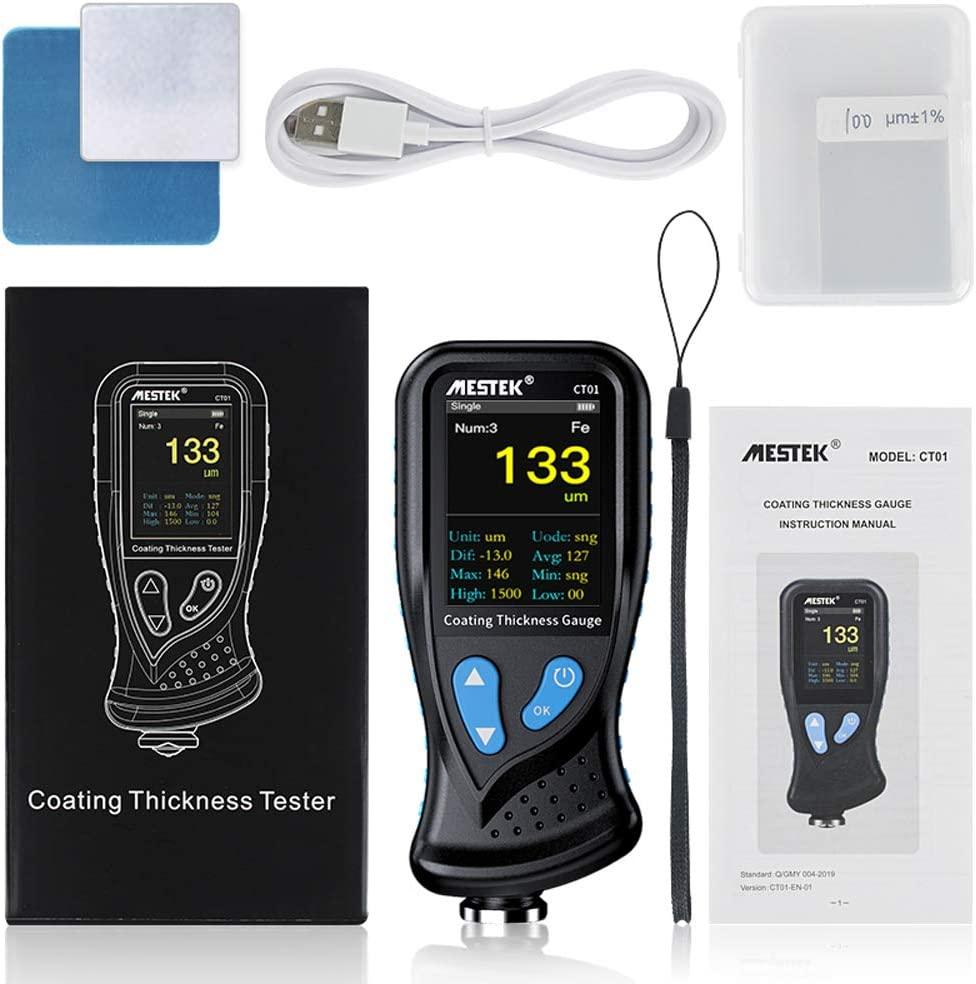

Packing List: 1 * Coating Thickness Gauge 1 * USB Cable 1 * Lanyard 1 * Iron Sheet 1 * Aluminum Sheet 1 * Standard Thickness Sheet 1 * User Manual
